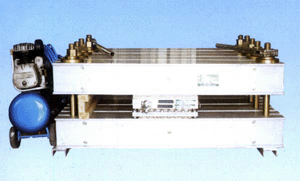

NameEdge,spot,and Liner repairing machine
IDDRJL-B
Details


      It suitable for repairing canvas, nylon, steel ropes and other types of transport tape, fix the width of the maximum can reach 650 ~ 2200mm, the largest patch size can be achieved break 250 1360mm, electric heating plate appearance specifications have 350 350mm, 350 1000mm, 350 1400mm, when the curing temperature for patch 145 , normally between 0 ~ 200 can be adjusted.
     Use 220V/380V AC, vulcanization pressure is 1.0Mpa, operation and use of electronic control box automatic control, by using pressurized hot water pressure pump resistance thermometer for temperature measurement, operation simple convenience, the work of Resistive Plate surface temperature difference generally do not more than 3 ~ 4 , is the ideal tape repair equipment.

      Specific parameters:
       1, the use of voltage 380V/660V/480V/440V/415V/400V / or 220V;
       2, curing temperature: 0 ~ 200 arbitrary regulation;
       3, heating time: room temperature to the curing temperature of not more
           than 50min;
       4, vulcanization pressure: 1.0MPa, depending on the specific tape may be,
           the largest up to 2.0 MPa;
       5, vulcanized holding time: According to adjust the thickness of adhesive tape.
